How to Replace the Flat Cable on Your Asus Laptop

Share on

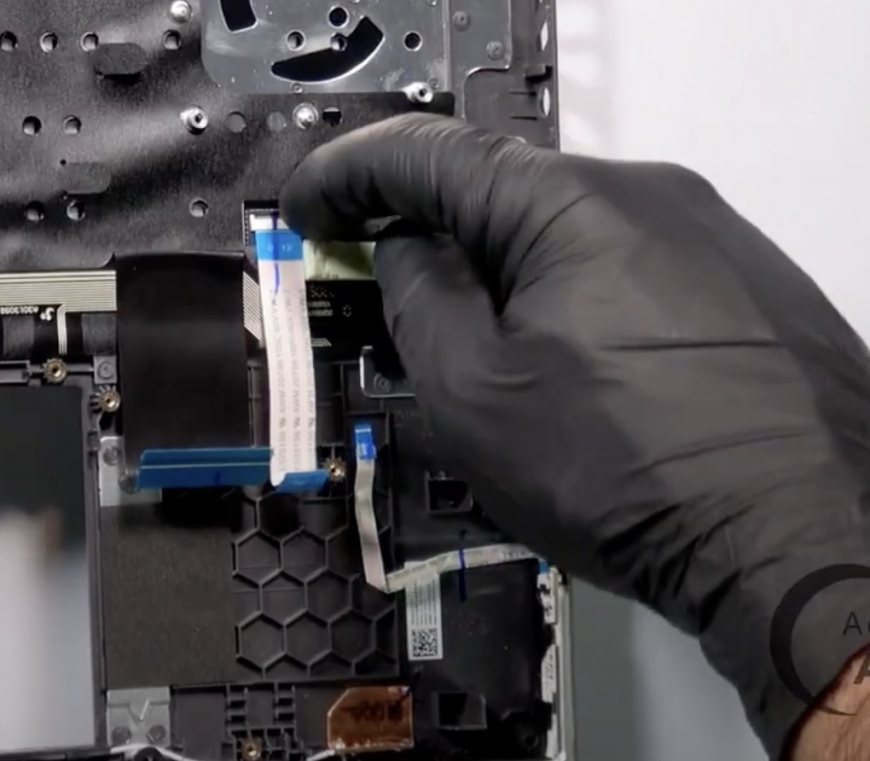

Asus laptop FFC

How to replace the flat cable on your Asus laptop

Flat cables, also known as Flexible Flat Cables (FFCs), are essential components in your Asus laptop, responsible for connecting various internal parts. Over time, these cables can become damaged, loose, or worn out, leading to malfunctions in components like the touchpad, keyboard, camera, or display. If your laptop exhibits connectivity issues or certain functions stop working, a faulty cable might be the cause.

In this guide, we will explain the types of flat cables, how to identify if an FFC needs replacement, and provide step-by-step instructions on replacing one. If you’re experiencing connectivity problems with your Asus laptop, you’ll find the correct replacement flat cables.

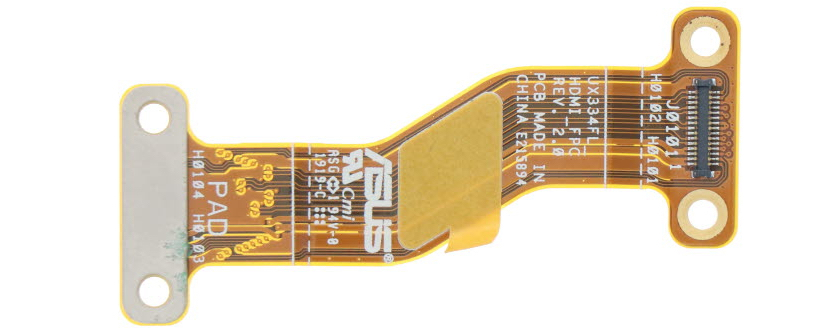

HDMI board cable for Asus laptop
HDMI board cable

What are FFCs?

Flat cables are thin, ribbon-like cables that connect different internal components of a laptop, allowing them to communicate effectively. Unlike traditional round wires, flat cables are designed to be flexible, making them ideal for tight spaces inside laptops. They are typically used for transmitting data, power, or video signals between components.

Common types of flat cables in Asus laptops

  1. Touchpad Board Cable – Connects the touchpad to the motherboard. A faulty touchpad cable can result in an unresponsive or erratic touchpad.

  2. Keyboard Ribbon Cable – Links the keyboard to the laptop's mainboard. If your keyboard stops working or specific keys fail to respond, the keyboard flat cable might be damaged.

  3. Display (LED) Flat Cable – Connects the LCD screen to the motherboard. A damaged LED flat cable can cause flickering, no display, or screen distortions.

  4. Camera Flat Cable – Connects the webcam to the system board. If your webcam is not detected or the video feed is distorted, this cable may need replacement.

  5. IO Board Cable – Connects various input/output ports, such as USB, audio, or SD card slots, to the motherboard.

Knowing which cable to replace is essential when troubleshooting laptop issues.

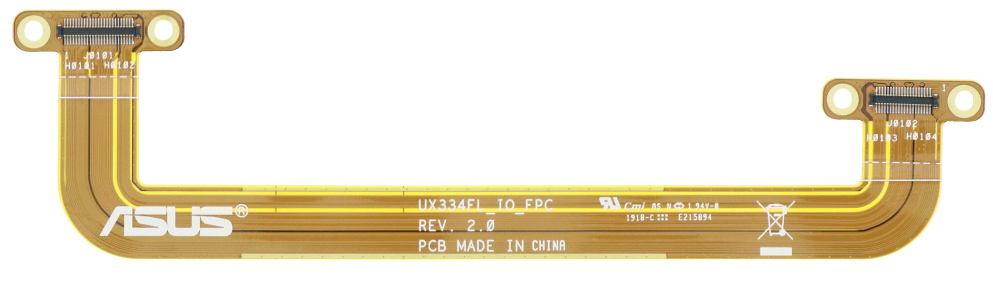

IO Board Cable
IO board cable

Signs your cable needs replacement

Before you proceed with replacing any parts, here are some common warning signs that indicate a faulty cable:

  • Laptop display flickers, has dead pixels, or won’t turn on → Possible LED flat cable issue

  • Unresponsive or glitchy touchpad → Check the touchpad board cable

  • Keyboard keys not working or input delay → Inspect the keyboard ribbon cable

  • Webcam not detected, distorted video feed → Could be a camera flat cable failure

  • USB ports or headphone jack not working properly → Might be the IO board cable

If you experience any of these issues, it's time to replace the affected flat cable.

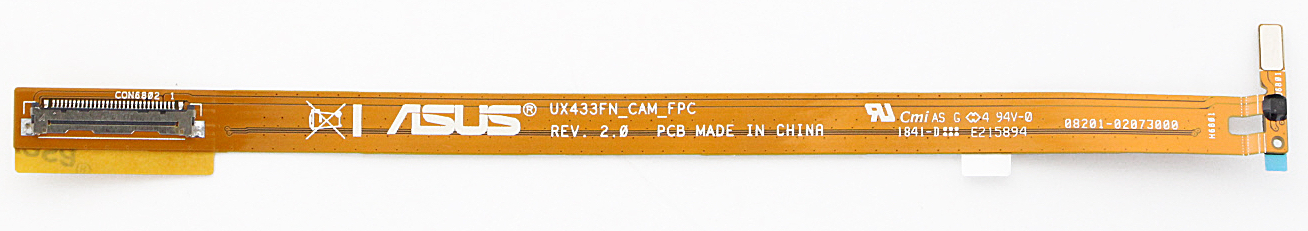

Webcam Cable
ZenBook 14 webcam cable

Replace a flat cable in an Asus laptop (step-by-step guide)

For this example, we’ll demonstrate how to replace the Touchpad Board Cable, but the process is similar for other flat cables.

Tools You’ll Need:

✔ Small Phillips-head screwdriver ✔ Plastic spudger or pry tool ✔ Anti-static wrist strap (optional but recommended) ✔ Replacement flat cable (Find your Asus flat cable here)

Step 1: Power down and prepare device

  1. Turn off your laptop and disconnect the charger.

  2. Remove the battery (if possible) to prevent electrical damage.

  3. Place your laptop on a clean, static-free surface.

Step 2: Open the laptop case

  1. Use a screwdriver to remove the screws from the back panel of the laptop.

  2. Gently pry open the casing using a spudger or plastic pry tool. Avoid using excessive force.

  3. Locate the touchpad board cable (a thin, ribbon-like cable connecting the touchpad to the motherboard).

Step 3: Disconnect the faulty cable

  1. Identify the flat cable’s connector on both the touchpad and motherboard.

  2. Lift the small locking tab or latch holding the cable in place.

  3. Carefully slide out the old cable without applying excessive force.

Step 4: Install the new flat cable

  1. Align the new flat cable with the connector slots.

  2. Insert the cable carefully, ensuring the contacts are properly aligned.

  3. Secure the locking tab to hold the cable in place.

Step 5: Reassemble and test laptop

  1. Close the laptop casing and tighten all screws.

  2. Reinsert the battery and connect the charger.

  3. Power on the laptop and test the touchpad to ensure it’s working correctly.

If your touchpad now works smoothly, congratulations! You’ve successfully replaced the flat cable.

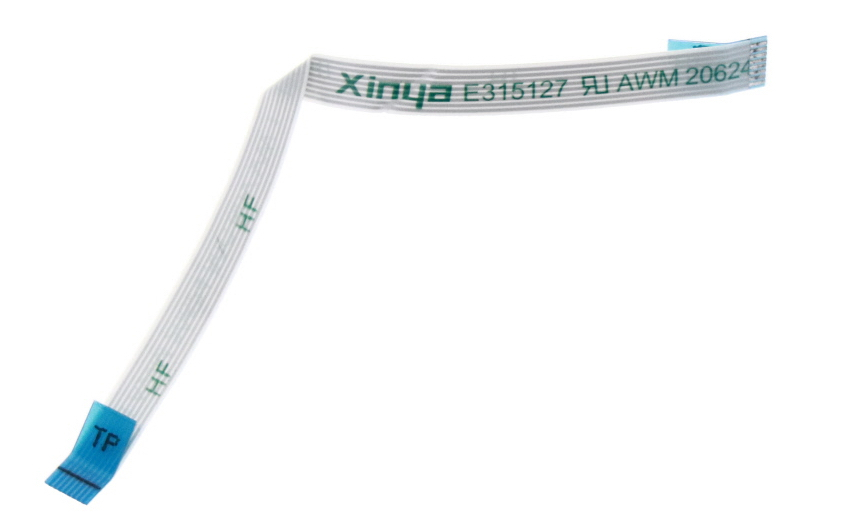

Touchpad cable
Touchpad FFC for Asus ZenBook 14

Get genuine Asus cables & laptop parts

Replacing a flat cable is a simple but critical repair that can restore full functionality to your laptop. To ensure compatibility and performance, always use original Asus replacement parts.

🔗 Find your replacement Asus flat cable here: Shop Flat Cables

Why choose Asus Accessories?

  • Original Asus Parts – Guaranteed compatibility and reliability.
  • Wide Selection – We offer replacement parts for all Asus laptops, including batteries, motherboards, and cooling fans.
  • Keyboards in Multiple Layouts – Need a French AZERTY keyboard? We've got you covered!
  • Fast Shipping – Get your parts quickly and get back to work.

Don’t let a faulty component disrupt your computer’s performance. Find your replacement today!

Thanks for reading!

Replacing a flat cable is an affordable and effective fix for many laptop issues. Whether it’s a faulty fingerprint sensor cable, power cable, or display connector, replacing a flat cable can restore full functionality without needing an expensive repair shop visit.

By following these steps and using original Asus parts, you can ensure a successful repair and extend the life of your laptop. If you need a replacement flat cable or any other Asus part, browse our full inventory today!
