Frame Asus ze520kl

Are you in need of a new frame for your Asus smartphone?

We have an extensive selection of compatible ZenFone frames for your smartphones at affordable prices.
Here, you'll discover original frames for all kinds of ZenFones: ZenFone 10, ZenFone 9, ZenFone 8, and more.
We provide parts for the ZenFone 10. If your phone is damaged due to a fall, it's not just the aesthetics that may be affected.
If the frame of your phone is deformed, it can lead to the cracking of the cover.
Moreover, this poorly-fitted cover is an open door to dirt and other debris that can infiltrate and damage your small components.
It's crucial to replace the damaged frame before your smartphone incurs additional damage that can, in some cases, be permanent.
If the chassis of your Asus ROG Phone needs replacement, we also offer for sale many frames for your ROG Phone 8, ROG Phone 7, ROG Phone 6, etc.
We provide on this site a variety of frames for all models of Asus smartphones: ROG Phone and Zenfone, our replacement parts are 100% original Asus, produced and certified by Asus.
You'll discover rear frames available in multiple colors to properly match your Zenfone (white, black, red, gold, etc.) and equipped, depending on the model, with an antenna, a volume button, a speaker, a webcam, and/or a flash lens.
All mounts are categorized by Zenfone model and ROG Phone to ensure the match between the selected item and the one that meets your requirements.

How to replace an Asus smartphone internal frame

Our team offers simple steps to carry out this repair on your own rather than paying a professional. Warning: before performing your smartphone repair it is advisable to make a full backup of your data as a precaution.
- Take a small flat screwdriver and a Phillips screwdriver and turn off your smartphone.
- Slide the flat screwdriver into the gap between the bottom of the back cover and the front of the phone to gently unclip the rear cover and remove it.
- Then remove the Sim card and the SD card
- Unscrew all the Phillips screws on the outer frame
- Underneath the camera is the volume button, unclip it with your flat screwdriver and remove it
- Slide the screwdriver back into the gap between the outer frame and the screen of your phone and gently pry it up to unclip it
- Replace the distorted chassis with the new one and redo the steps in the other direction to reassemble your phone
View more >
Hide details >

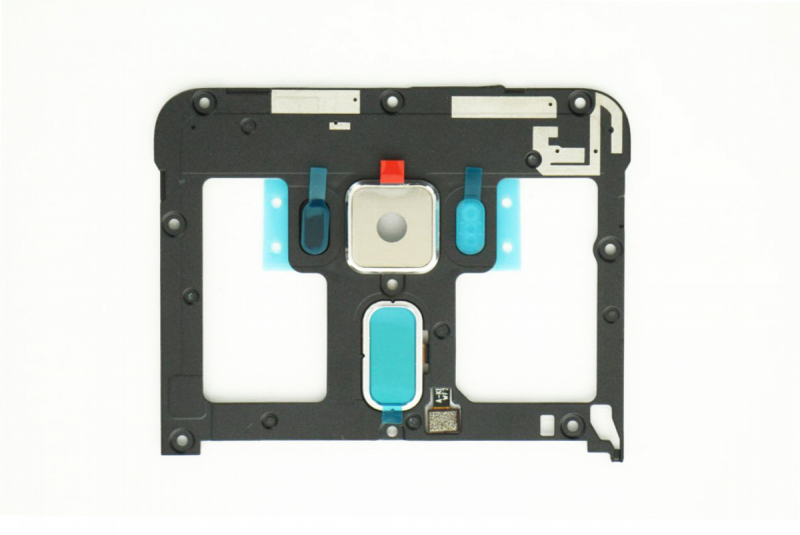

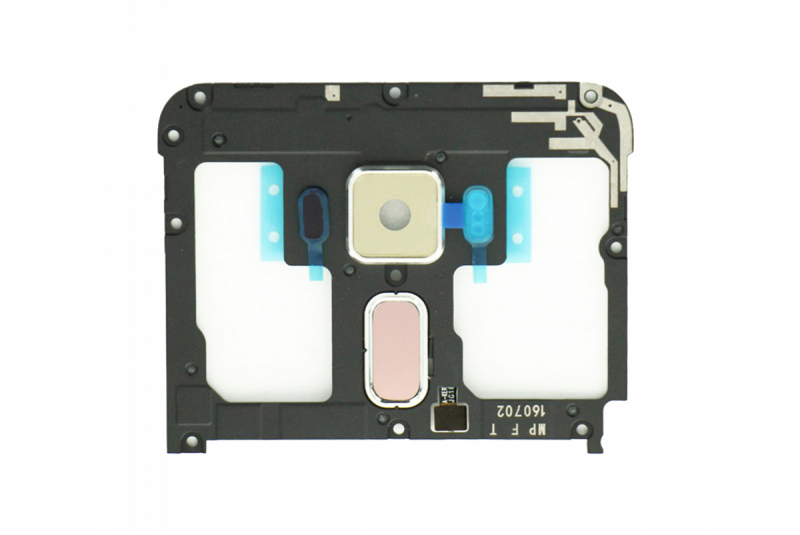

Asus Golden internal frame ZenFone 3 5.2

Asus Golden internal frame ZenFone for ZE520KL

Asus ZenFone 3 Gold Back Case
This gold inner back part which is 100% Asus authentic and only suitable for the ZE520KL model, includes the flash, the fingerprint reader, the lens of the back webcam and the...
$ 49
IN STOCK - Shipped from Europe - Fast 3-5 Day Worldwide Delivery
Asus White internal frame ZenFone 3 5.2

Asus White internal frame ZenFone for ZE520KL

Asus ZenFone 3 White Back Case
This white inner back part which is 100% Asus authentic and only suitable for the ZE520KL model, includes the flash, the white fingerprint reader, the lens of the white back webcam and the...
$ 49
IN STOCK - Shipped from Europe - Fast 3-5 Day Worldwide Delivery
Asus Black internal frame ZenFone 3 5.2

Asus Black internal frame ZenFone for ZE520KL

Asus ZenFone 3 Black Back Case
This black inner back part which is 100% Asus authentic and only suitable for the ZE520KL model, includes the flash, the fingerprint reader, the lens of the back webcam and the...
$ 49
IN STOCK - Shipped from Europe - Fast 3-5 Day Worldwide Delivery

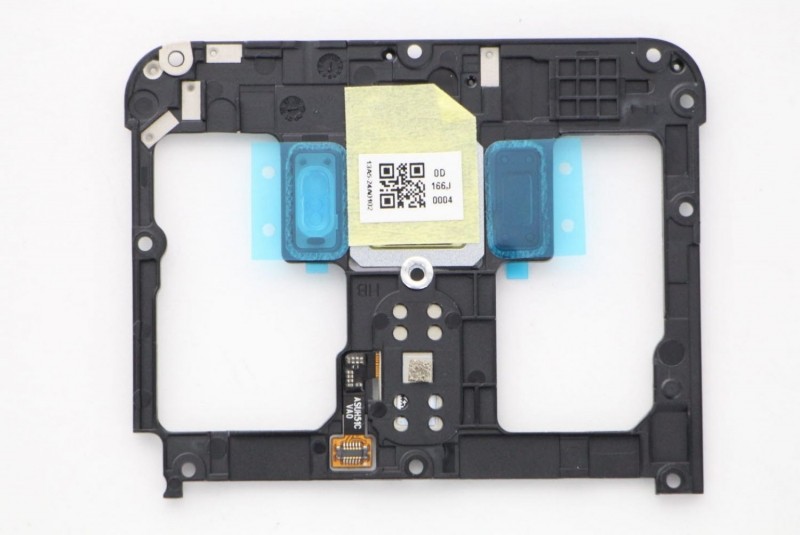

Asus Internal frame ZenFone  3

Asus Internal frame ZenFone for ZE520KL

Rear Frame for the ZenFone 3
Internal frame located at the back of the Asus smartphone that serves as a holder for the various components but also as a mounting bracket for the rear case of the phone...
$ 29
Available only upon request
