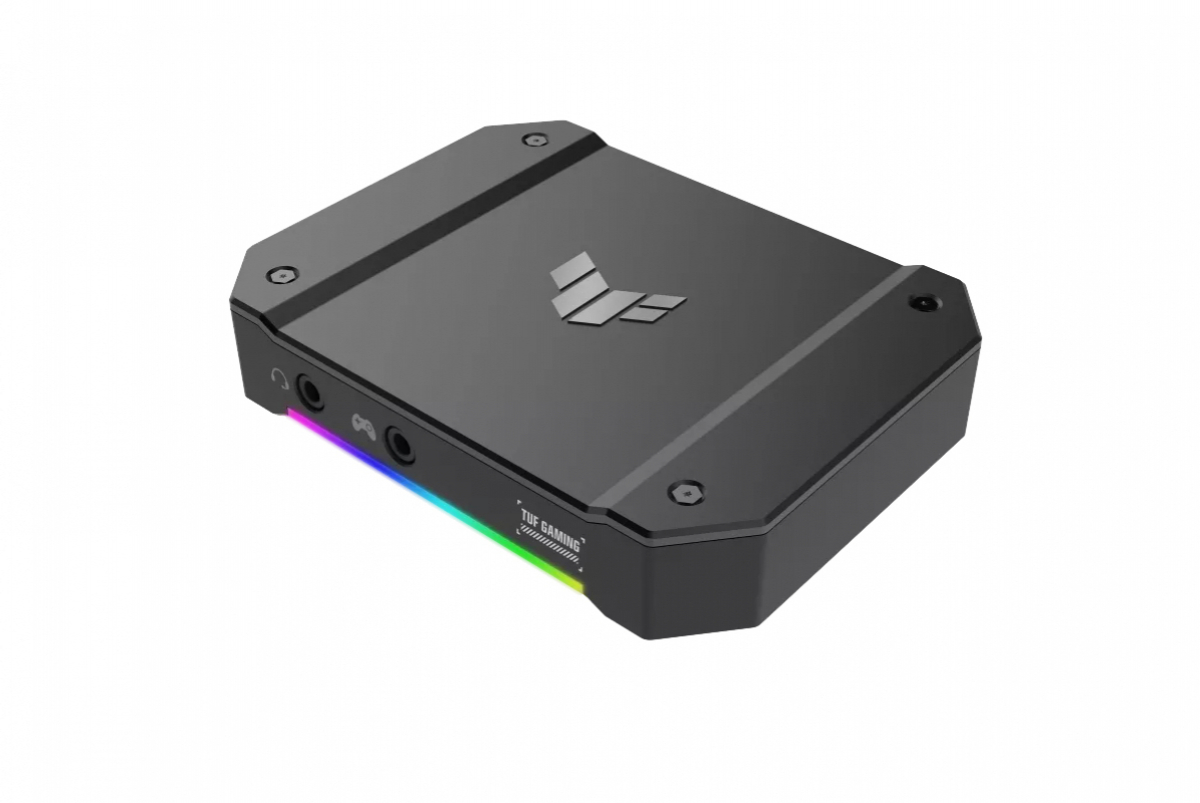

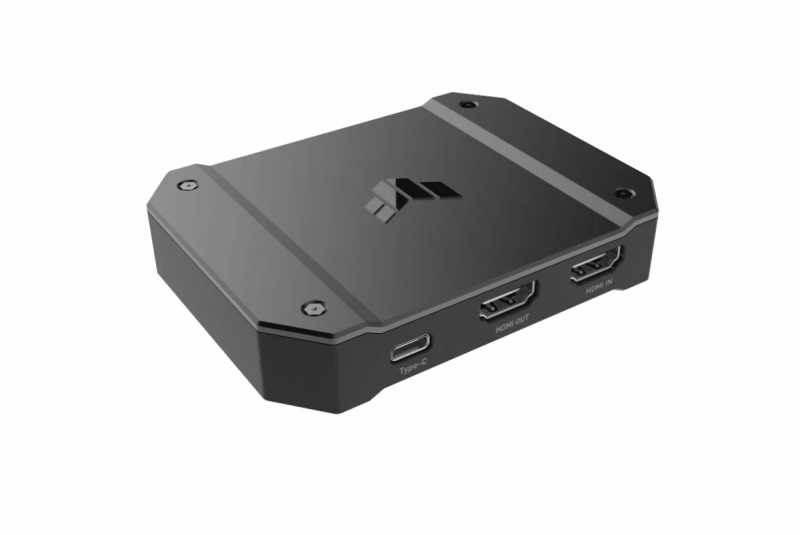

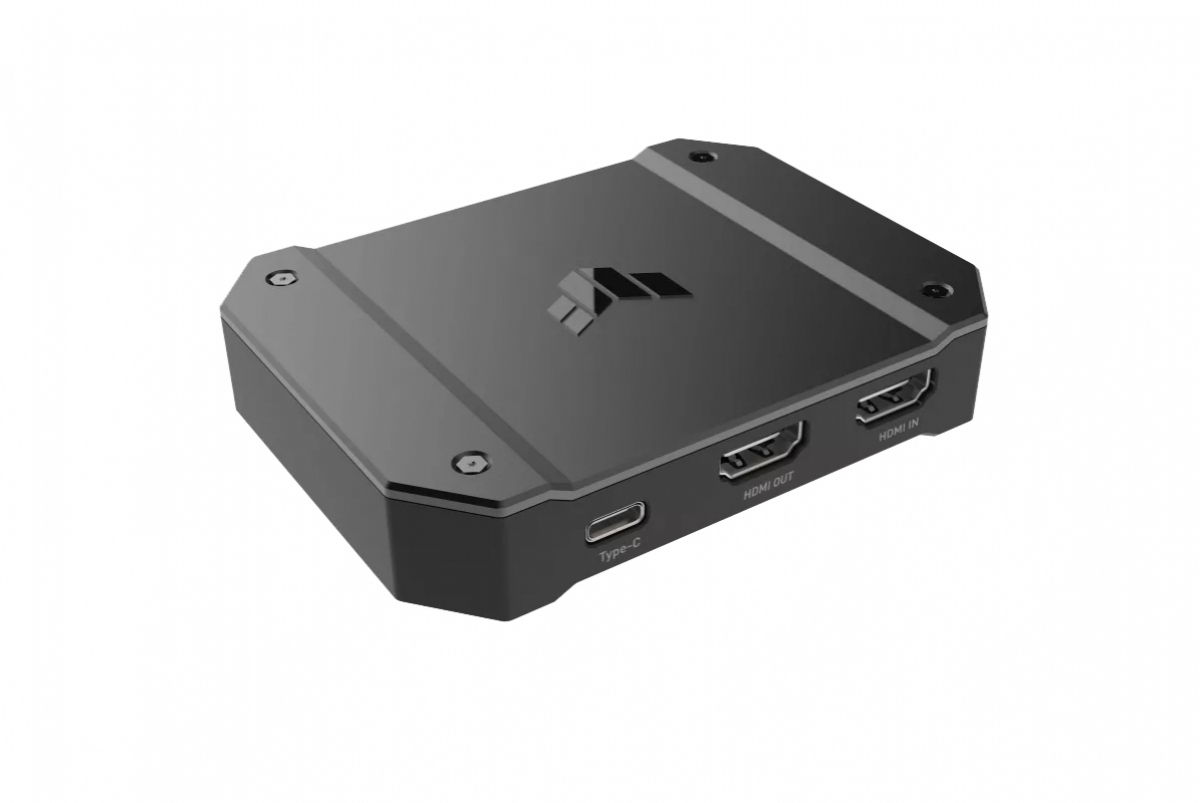

TUF Capture Box 4K Pro enclosure
TUF Capture Box 4KPro

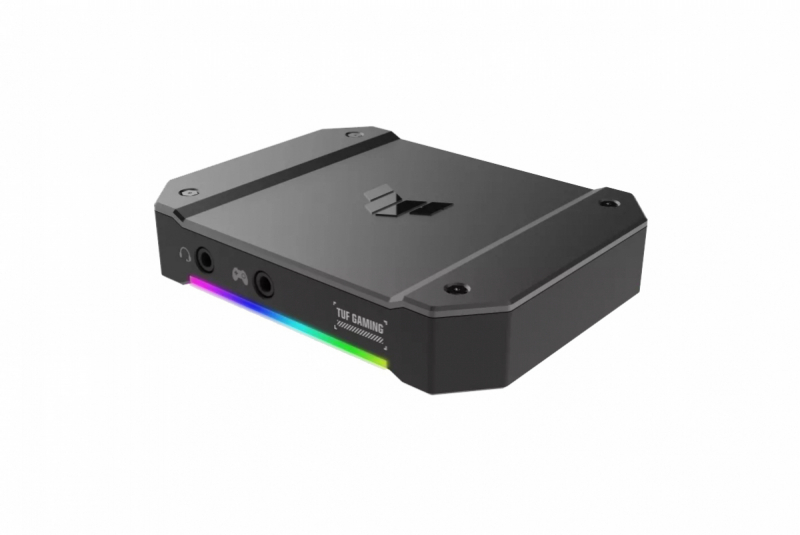

- Two 3.5mm jacks allow connection with a controller and headset for party mode on gaming console
- RGB lighting on the exterior indicates the device's operational status
- The outer aluminum shell dissipates heat and enhances durability
- Audio input via HDMI 2.0 ensures quality sound for your recordings
- HDMI 2.1 compatibility offers HDR video pass-through support of 4K up to 144Hz, 2K up to 144Hz, and Full HD up to 240Hz
- Enjoy smooth 4K video streaming at up to 60 fps, 2K at up to 120 fps, and Full HD at up to 120 fps, all through a plug-and-play USB 3.2 Gen 2 connection
Credit card and Paypal
Return your order within 7 days
Official Retailer
Add to cart
- Description
- Details
- Comments
TUF Capture Box 4K Pro acquisition box
Capture every detail in high definition
Discover the future of capture video with the Capture Box 4K Pro TUF GAMING, designed for demanding gamers and content creators. Thanks to its HDMI 2.1 compatibility, this capture box enables video HDR pass-through in 4K up to 144 Hz, in 2K up to 144 Hz, and in Full HD up to 240 Hz. Enjoy a smooth, uncompromised gaming experience with VRR Pass through that eliminates any lag or tearing from the screen, allowing you to play at the cutting edge of technology.
Professional-quality streaming
The TUF GAMING Capture Box 4K Pro offers outstanding streaming performance, capturing videos in 4K at up to 60 fps, in 2K at up to 120 fps and in Full HD at up to 120 fps. Connect easily via the USB 3.2 Gen 2 plug-and-play interface, guaranteeing quick and easy installation without sacrificing quality.
Designed for gamers

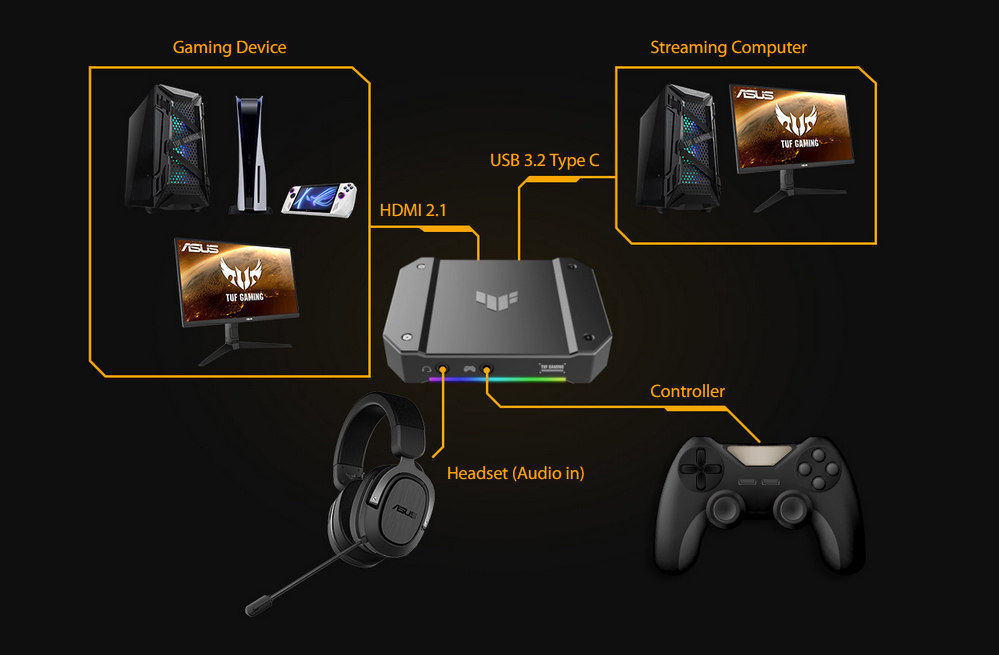

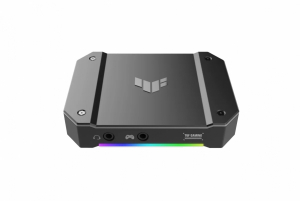

With two 3.5 mm jacks, easily connect your controller and headset for an immersive, gaming experience ideal for console party sessions. External ARGB lighting not only enhances your, gaming space, but also indicates the device's operating status for intuitive interaction.
Enhanced compatibility and performance

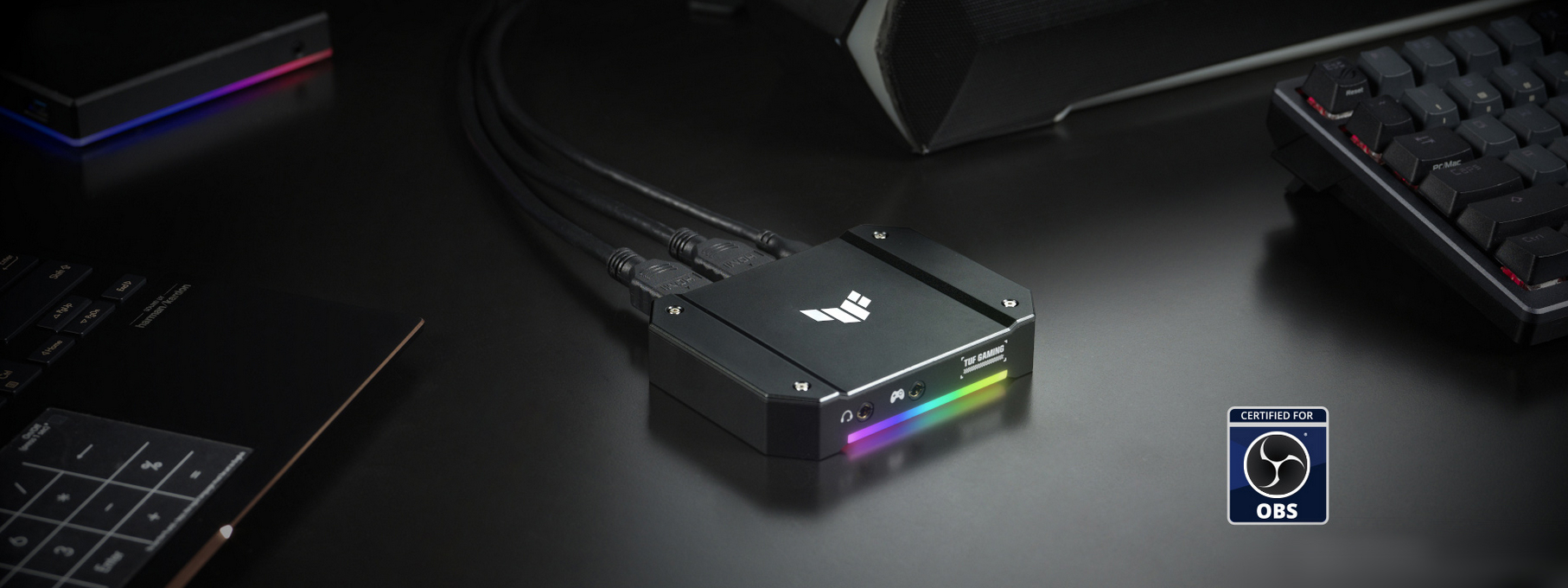

OBS-certified compatibility ensures seamless integration with the most popular streaming platforms, making every live broadcast smooth and professional. What's more, integrated scaling and detail reduction features provide impeccable picture quality without the need for manual adjustments.
Durability and efficiency

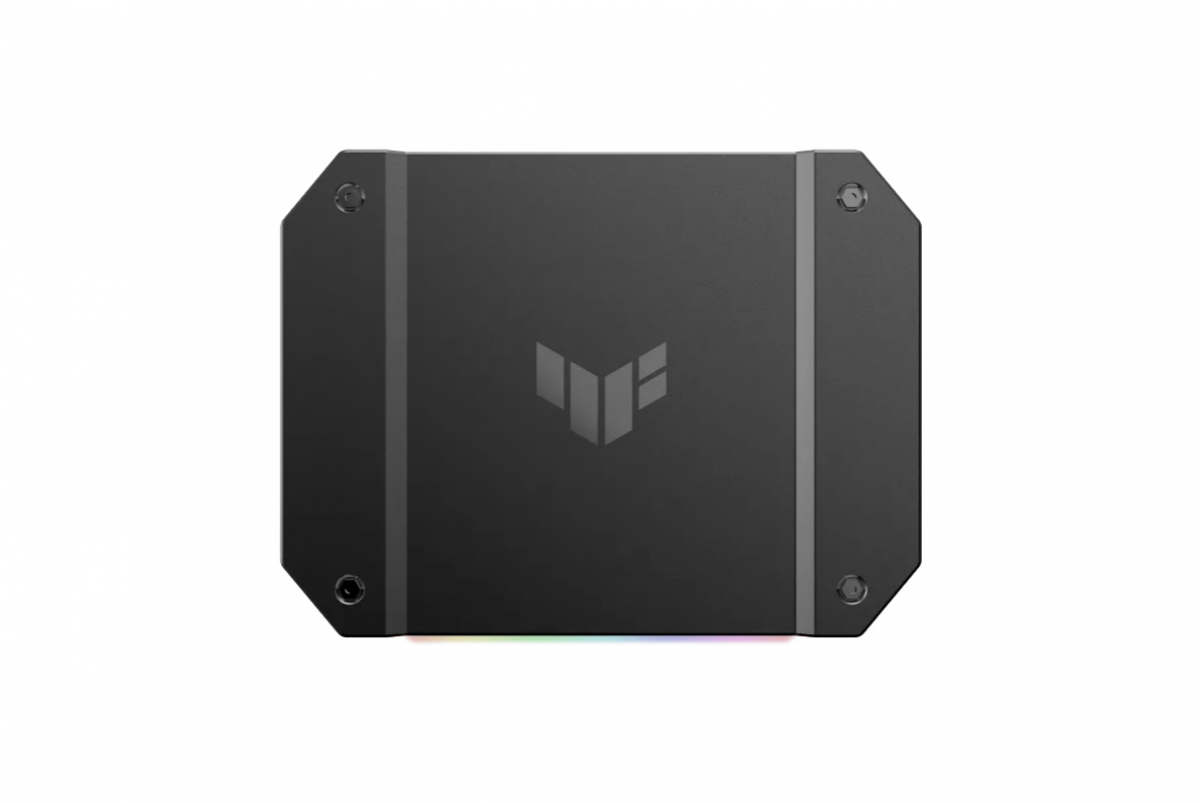

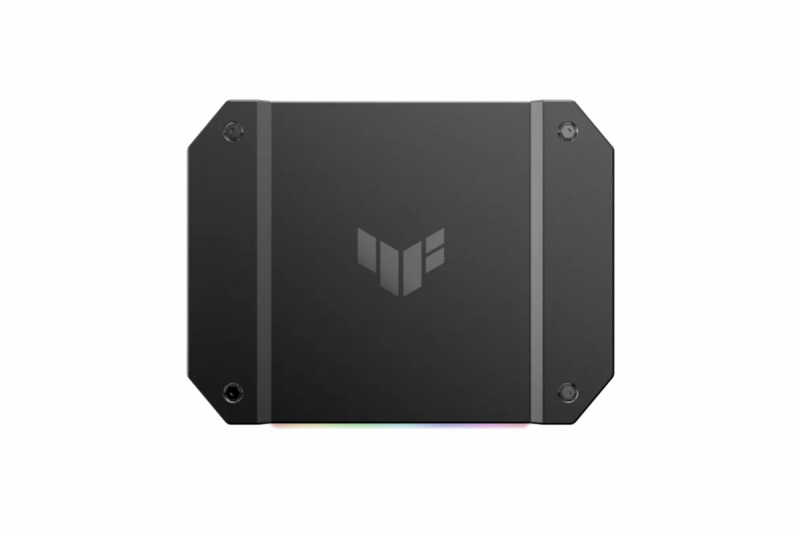

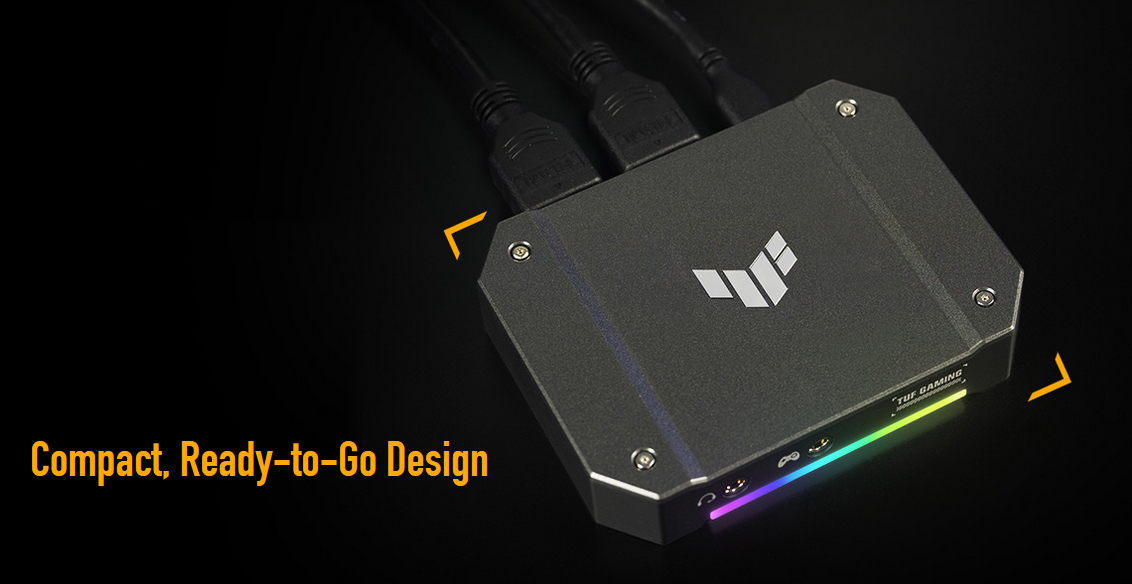

Constructed with an aluminum outer shell, the TUF GAMING Capture Box 4K Pro not only displays a robust and elegant design, but also plays a crucial role in dissipating heat, thus ensuring continuous and long-lasting performance.
Whether you're a passionate gamer or a content creator, the TUF GAMING Capture Box 4K Pro is your ideal ally for capturing and broadcasting epic gaming moments in high definition. Its cutting-edge technology, gaming-friendly design and durable construction make it an unavoidable choice for those who settle for nothing but the best.
Technical specifications :
Interface: USB 3.2 Gen2x1 Type-C input
Input video: HDMI 2.1
Output video (Pass through) : HDMI 2.1
Audio input : HDMI 2.1
Audio output (Pass through): HDMI 2.1
Resolution video (input)
4K144HDR, 4K120HDR, 2K144HDR, 1080p240HDR, 1080i60HDR,
720p60HDR, 576pHDR, 480p HDR
Resolution video maximum (Pass through)
4K144HDR, 4K120HDR, 2K144HDR, 1080p240HDR, 1080i60HDR,
720p60HDR, 576pHDR, 480pHDR
HDMI VRR pass-through: Yes
Resolution video maximum (recording) :
USB 3.2 Gen2 Type-C :
4K60,4K30HDR,2K120,2K60HDR,1080p120HDR,720p120HDR
Format video (recording) :
NV12, YUY2, MJPEG, P010
Audio mixing input :
3.5 mm headphones, 3.5 mm joystick

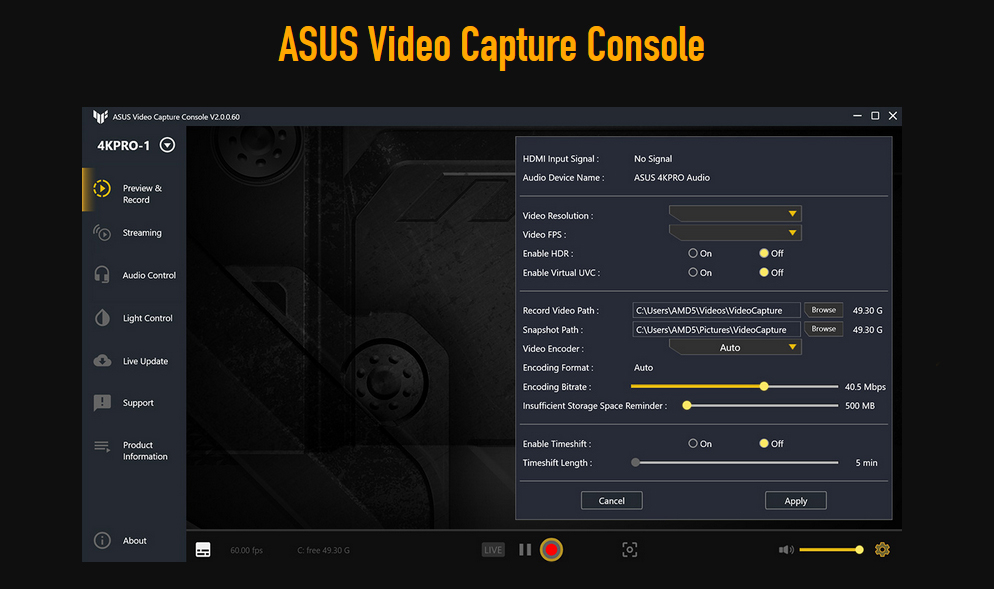

You can download the "Capture Console" video from the "Driver and utilities" section on the
Official website Asus for volume control
Game console compatibility
PlayStation, Xbox, Switch
Indicator :
ARVB multicolor LED indicator
Dimensions (W x D x H): 10.5 x 8 x 2.1 cm
Weight: 161g

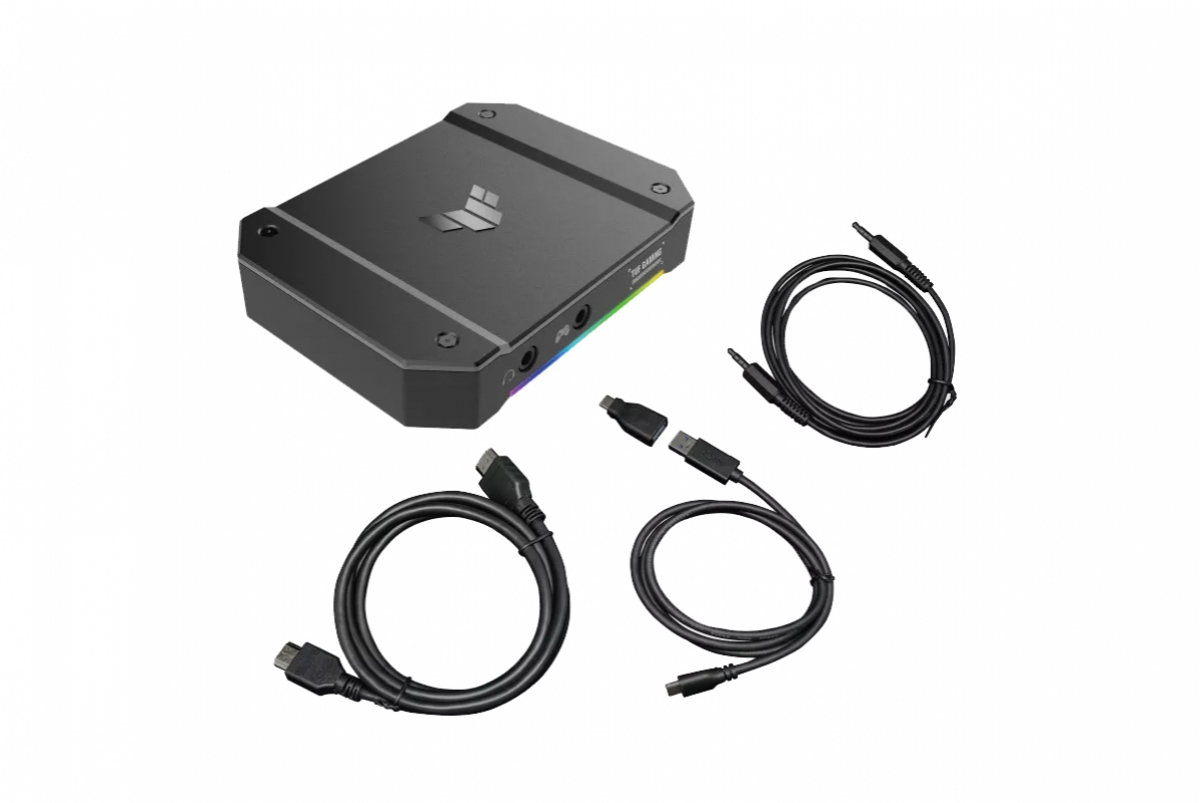

Accessory:
Quick start guide
Cable HDMI 2.1
Cable USB 3.2 Gen 2 Type-C to Type A
Adapter USB Type-A to Type-C
Cable audio 3.5 mm to 3.5 mm
Notes :
The TUF 4KPRO allows pass-through video up to 4K resolution at 144 Hz,
but only when connected to an HDMI 2.1 monitor with 48G bandwidth.
If the monitor has an integrated DSC, the maximum supported pass-through video is 4K
up to 120 Hz.
The TUF 4KPRO allows pass-through video up to 4K resolution at 144 Hz, but only when connected to an HDMI 2.1 monitor with 48G bandwidth.
If the monitor has an integrated DSC, the maximum supported passthrough video is 4K.
Up to 120 Hz.
System requirements (desktop) :
Intel Core i5-6XXX or higher
Recommended: Intel Core i7-6XXX or higher
AMD Ryzen 5 1XXX or higher
Recommended: AMD RYZEN 7 1XXX or higher
Intel Core i5-6XXX or higher
AMD Ryzen 5 1XXX or higher
8 GB or more (dual channel*)
Recommended: 16 GB or more (dual-channel)
You need to set your memory to dual-channel mode on your computer system.
NVIDIA GeForce GTX1060 or higher
AMD Radeon HD7870 or higher
If you're recording in a 4K format, HDR, high frame rate, etc., an NVIDIA VGA card is required.
NVIDIA GeForce GTX1060 or higher
If you are recording in a 4K format, HDR, high frame rate, etc., an NVIDIA VGA card is required.
Requires USB 3
System requirements (laptop)
Intel Core i7-4810MQ or higher
AMD Ryzen 5 3500U or higher
Recommended: Intel Core i7-7700HQ or higher
Recommended : AMD RYZEN 5 3550H or higher
Intel Core i7-4810MQ or higher
AMD Ryzen 5 3500U or higher
8 GB or more (dual-channel)
Recommended: 16 GB or more (dual-channel)
You must set your memory to dual-channel mode on your computer system.
1 GB free HD space
NVIDIA GeForce GTX 870M or higher
Recommended: NVIDIA GeForce GTX 1050 Ti or higher
NVIDIA GeForce GTX 1050 Ti or higher
Requires USB 3
