How to Replace ROG Ally Trigger

Reading time: 2 minutes

Do I Need to Replace my ROG Ally Trigger?

Is your ROG Ally’s trigger not working as it should? Whether you’re a casual gamer or seasoned enthusiast, this guide will walk you through the process of diagnosing and replacing your faulty Ally trigger.

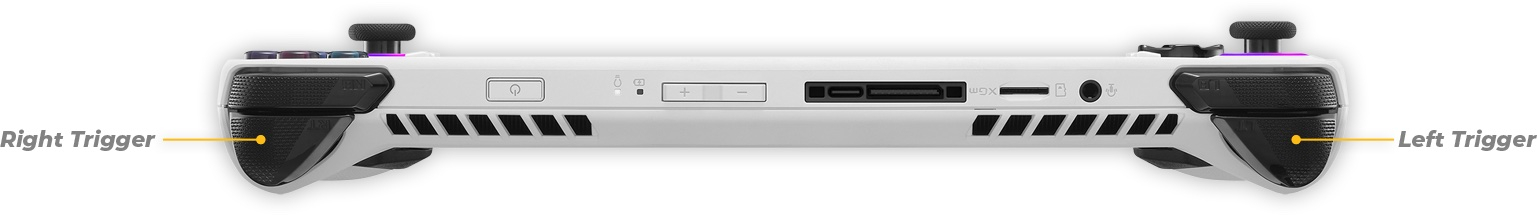

The Asus ROG Ally, like many modern gaming consoles, features two primary triggers:

• Left Trigger (L2): Typically used for actions like accelerating in racing games, aiming down sights in shooters, or activating certain abilities.
• Right Trigger (R2): Often used for firing weapons, braking in racing games, or performing other actions requiring a more precise input.

Both triggers on the ROG Ally are analog, meaning they can detect varying levels of pressure, allowing for nuanced control in games. This feature is essential for many modern titles that require precise input, such as racing games, flight simulators, and first-person shooters.

Common Problems with Handheld Gaming Triggers

Even if you take the best care of your ROG Ally, all gaming triggers can experience issues over time, especially if you are a very avid player. These problems can impact your gaming experience and make it difficult to play certain games.

Drift

Drift occurs when a trigger registers input even when it's not being pressed. This can be frustrating, especially in games that require precise aiming or control. Drift is often caused by wear and tear on the trigger mechanism or debris buildup.

Sticking

Sticking occurs when a trigger gets stuck in the pressed position, even when you release it. This can make it difficult to control your character or vehicle and can be frustrating in fast-paced games. Sticking is often caused by debris buildup or damage to the trigger mechanism.

Unresponsiveness

Unresponsiveness occurs when a trigger doesn't register input, even when it's being pressed. This can be frustrating in any game, as it can make it difficult to perform actions that require trigger input. Unresponsiveness is often caused by damage to the trigger mechanism or a loose connection.

If you are encountering these issues, you may need to replace your L2 or R2 buttons. However, before diving into the disassembly process, it's essential to rule out other potential causes:

• Software Issues: Check for any updates to the ROG Ally's operating system or Armoury Crate SE. Sometimes, software glitches can affect input devices.
• Game Compatibility: Ensure the game you're playing is compatible with the ROG Ally and doesn't have specific trigger requirements or issues.
• Calibration: Use Armoury Crate SE to recalibrate your triggers. This can resolve sensitivity or response problems.
• Physical Damage: Inspect the trigger and surrounding area for any visible signs of damage, such as cracks or debris.
• Other Input Methods: Test the trigger functionality in different games or applications to isolate the problem.

If you've tried these steps and the issue persists, then replacing the trigger might be necessary.

Install a New Trigger on your ROG Ally

Important Note: Using a genuine Asus replacement part is crucial for optimal performance and to avoid potential damage to your device. Asus Accessories is your trusted source for 100% Asus manufactured components, with over 10 years of industry experience.

This guide is for informational purposes only. Don’t hesitate to reach out to our tech team if you have any questions or need help selecting a compatible part. We also recommend you view our ROG Ally disassembly guide on YouTube!

Tools Needed:

• Phillips head screwdriver
• Plastic opening tool
• Tweezers
• Anti-static wrist strap (recommended)

Step-by-Step Guide

1. Power Off and Prepare:

• Ensure your ROG Ally is completely powered off.
• Ground yourself using an anti-static wrist strap to protect the device's internal components.

2. Remove Back Panel:

• Remove the six Phillips head screws securing the back panel.
• With a flat, plastic opening tool, carefully lift the back panel. It is secured by small clips which you will hear release as you work your way around the console.

3. Disconnect Battery:

• For safety, disconnect the battery connector. This is usually a small, flat cable with a locking mechanism.

4. Remove Trigger Assembly:

• Locate the trigger assembly that you need to replace. It is secured by two few Phillips head screws.
• Carefully remove the screws and detach the trigger assembly from the motherboard.

5. Remove Old Trigger:

• Gently detach the old trigger from the trigger assembly. Take note of its position and orientation for correct reassembly.

6. Install New Trigger:

• Align the new, official Asus-manufactured trigger with the trigger assembly and push it into place.
• Secure the new trigger in place using the two screws removed earlier.
• Give the newly installed trigger a test press to check if it feels correct before continuing.

7. Reassemble:

• Reattach the trigger assembly to the motherboard.
• Reconnect the battery.
• Replace the back panel and secure it with the screws.

8. Testing:

• Power on your ROG Ally and test the newly installed trigger to ensure proper functionality.

Additional Tips:

• Take clear pictures during disassembly to aid in reassembly.
• Use a soft, lint-free cloth to clean any dust or debris from the internal components.
• Be gentle when handling delicate components.

Remember: Using a genuine Asus replacement trigger is essential for optimal performance and to avoid potential damage to your ROG Ally. Purchase your replacement part from Asus Accessories for guaranteed authenticity.

By following these steps carefully and using original Asus parts, you can successfully replace your ROG Ally trigger.

Tips for Maintaining Trigger Longevity

There are several things you can do to prevent trigger issues on your Ally gaming console:

• Keep your console clean: Dust and debris can build up on the triggers and cause them to stick or drift. Use a soft, dry cloth to clean the triggers regularly.
• Handle your console with care: Avoid dropping or mishandling your console, as this can damage the triggers.
• Use a protective case: A protective case can help to keep your console safe from damage and can also help to prevent dust and debris from building up on the triggers. You can view our entire range of original Asus ROG Ally accessories including the ROG Ally travel case.

Trigger issues can be frustrating, but there are several things you can do to prevent them. By keeping your Ally console clean, handling it with care, and using a protective case, you can help to extend the life of your triggers and enjoy a better gaming experience.

Thank you for your interest in this article. We hope you found it helpful! Please do not hesitate to reach out if you have any questions relating to your Asus device or suggestions for future articles!
