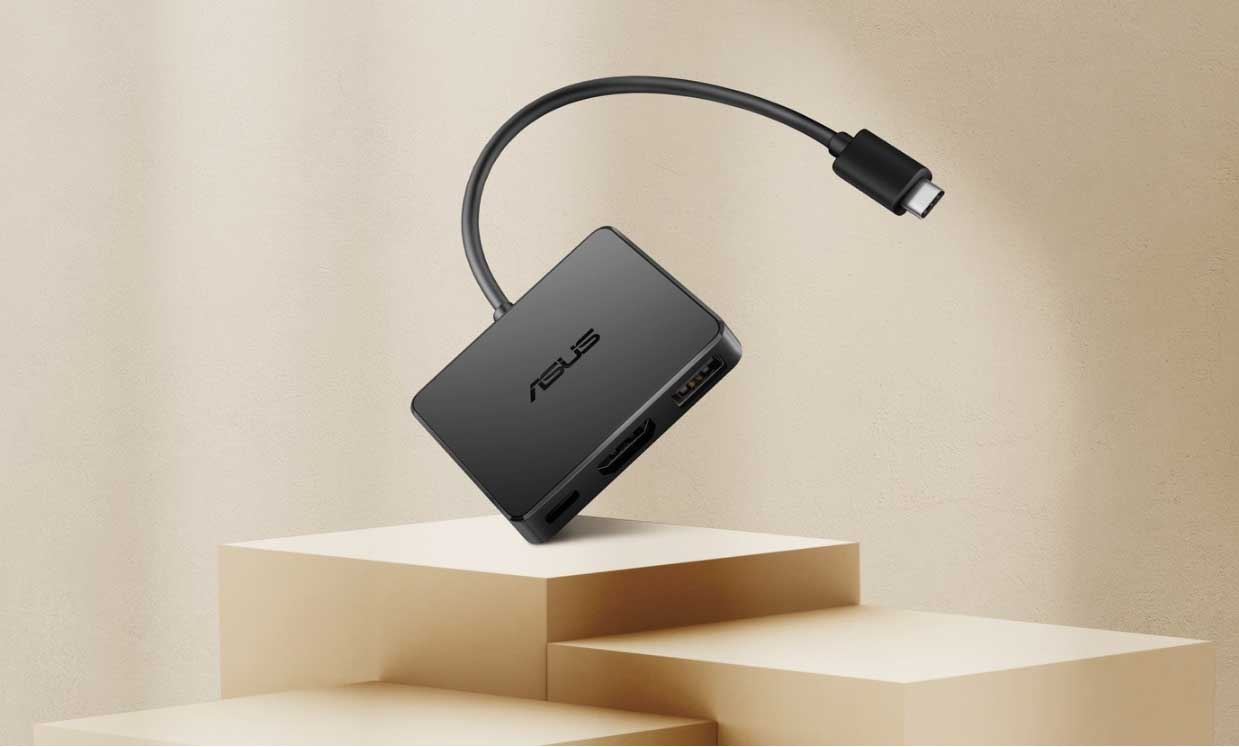

Asus USB-C Mini Dock

Black Universal Mini Dock
boxed version of Asus ZenBook

Compatible with all laptops equipped with a USB-C connection

The USB-C Mini Dock is a compact and lightweight USB-C docking station that gives PCs and laptops additional expansion options. It features an HDMI output with 4K output, USB Type-A and USB-C for transfer speeds of up to 10Gbps, as well as a power pass-through of up to 100W.
The ASUS USB-C Mini Dock has a slim 11.35 mm profile and weighs just 48g, making it perfect for on-the-go productivity.



It offers a 100W Power Boost over USB-C, which is enough to quickly load the latest laptops. The ASUS USB-C Mini Dock offers data transfer speeds of up to 10 Gbps over USB Type-A and USB-C up to 4 times faster than USB 3.0 so transferring large files or folders only takes a few seconds.
Users can also use the USB ports to load cell phones and other devices.

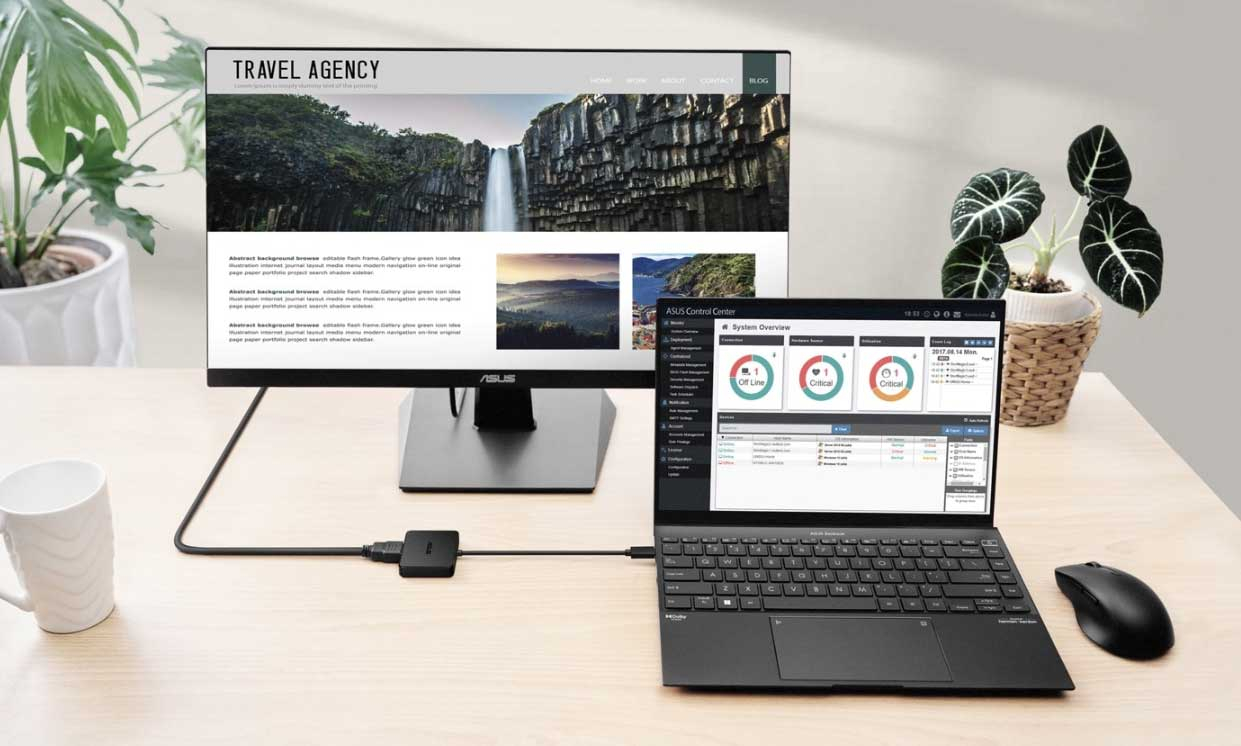

The DC100 Mini USB Dock is capable of supporting 2K video at 144Hz, or up to a single 4K display, via HDMI to expand the workspace for efficient multitasking.

The ASUS USB-C Mini Dock includes one USB-C port, one USB Type-A port, and one HDMI port. Each I/O port has been tested to ensure product durability. Includes overload strength testing, durability testing, vibration testing, and operation in extreme conditions of humidity, altitude, and temperature.

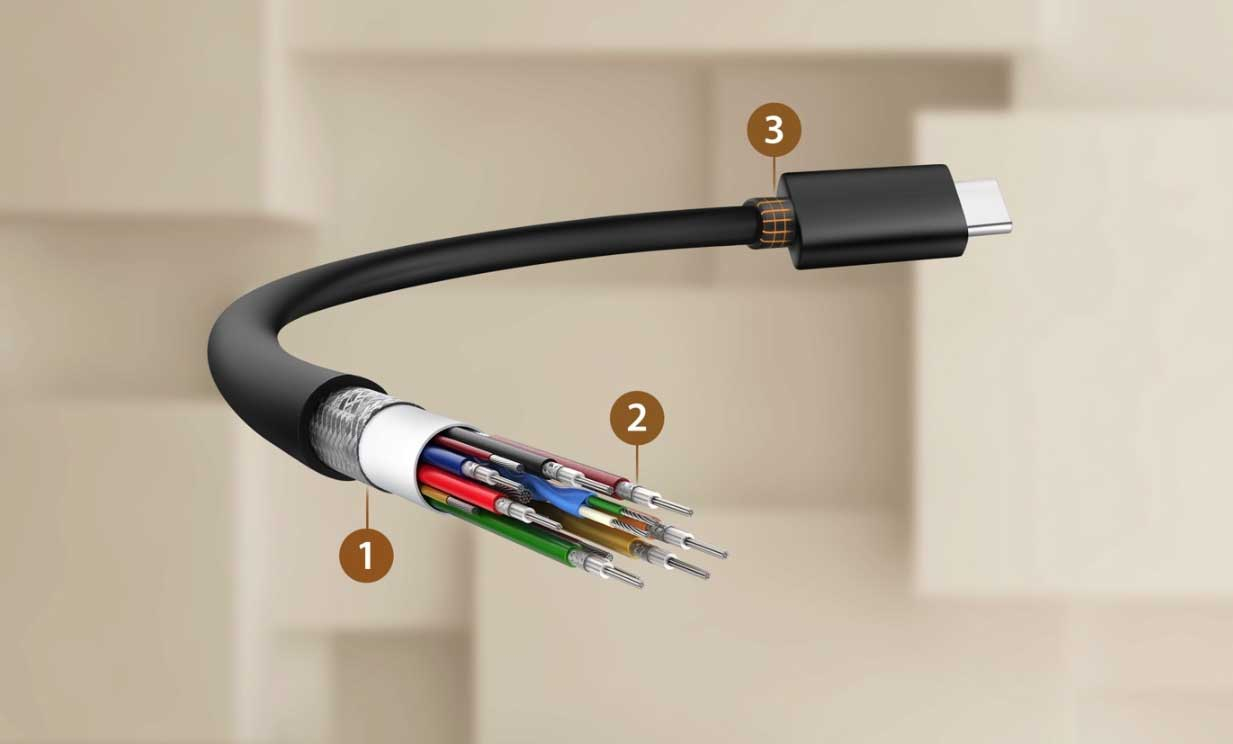

For improved strength and resiliency, the ASUS USB-C Mini Dock features an aluminum braid shielded connection cable that provides up to 1.7 times more coverage than cables standard. This minimizes the risk of signal attenuation, reducing interference by up to 60%, ensuring robust connections for any setup. The cable is also extremely durable and has been lab tested to withstand up to 10,000 bends and twists.



1. Foil Braid: 1.7 times better coverage
2. Coaxial cable cores: 60% reduced interference
3. USB-C connector: 10,000 flex tests

Technical characteristics :

The ports :
- 1 x USB 3.2 Gen2 Type-C upstream port for computer side port (10 Gbps / DP1.4 / output: up to 85 W)
- 1 USB 3.2 Gen2 Type-A port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C port (10Gbps/100W/5V/1.5A PD input)
- 1 x HDMI with maximum output resolution of 3840 x 2160 @ 60Hz, FHD @ 144Hz

Video resolution:
Single HDMI extension. Output: 1280x720 (16:9)
Single HDMI extension. Output: 1280x768 (16:9)
Single HDMI extension. Output: 1360x768 (16:9)
Single HDMI extension. Output: 1600x900 (16:9)
Single HDMI extension. Output: 1920x1080 (16:9)
Single HDMI extension. Output: 2048x1152 (16:9)
Single HDMI extension. Output: 3840x2160 (16:9)

Model: DC100
Operating system: Windows 10 / 11
Cable length: 15 cm
Black color
Weight: 48g
Dimensions: 59 x 48 x 11.35 mm
Materials: Plastic, Metal
