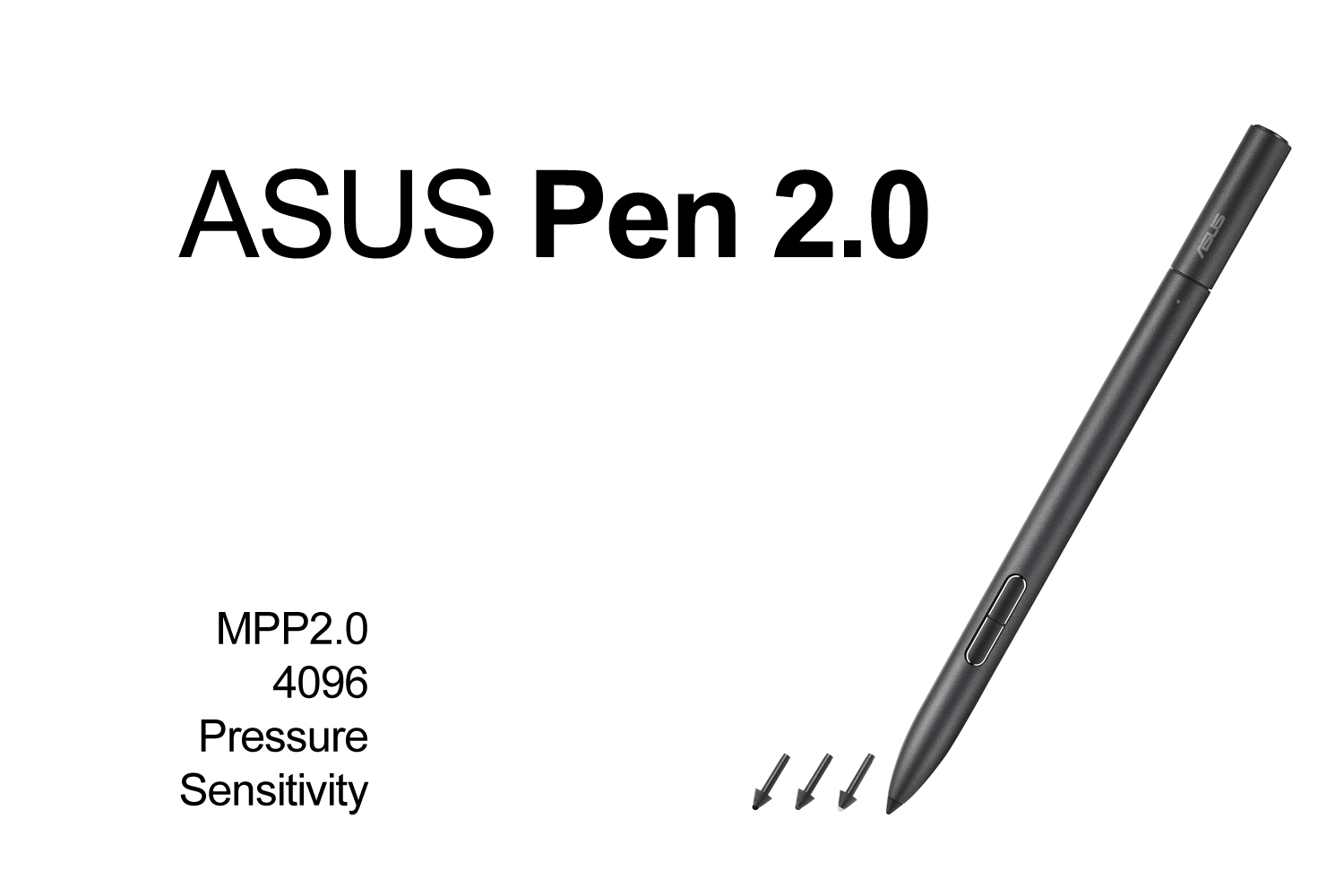

Black stylus for ZenBook and VivoBook Slate (OEM)
Pressure levels: 4096
Peak force: 5 to 350 g
Number of buttons: 3 Material: Polyurethane (PU) and metal
Weight: 16g
Interface: MPP 2
Dimensions: 164mm Ø10.0mm
Available interface: USB Type-C
Duration of use: 140 hours
Color: black
Hardware interface
1. Eraser button
2. USB Type C port
3. Replaceable stylus tip
4. Right click button
5. LED indicator
6. Bluetooth button
Getting started:
1. Charging your Asus Pen
- Carefully remove the USB Type C port cover to reveal the port
- Align and place the included USB Type C cable into the USB Type C port
- Connect the USB charging cable to a power source to start charging
Note: To activate your Asus Pen, be sure to charge it before first use
2. Pair your Asus Pen to a Bluetooth device
- Make sure the other device is Bluetooth enabled
- Press and hold the Bluetooth button on your Asus Pen until the LED light flashes blue
- On the other device, select "Asus Pen" from the list of Bluetooth devices to start pairing.
- The LED will turn white once the pairing process is complete
Compatible models:
T3300KA, TN3402QA, TP3402ZA, UM5401RA, UM3402YA, UM5302TA, UP5401ZA, UP6502ZA, UP6502ZD, UX3402ZA, UX5400ZB, UX5401ZA, UX5401ZAS, UX582ZM, UX8402ZA, UX8402ZE, UX8402VA, UX8402VE, UX5400ZF, UM3402YAR, T3304GA, UX3404VA, UP3404, TP3604VA, TN3604YA, UX6404VV/VI, W7604J3D, H7604JV, H7604JI, GZ301VV/VU/VJ/VA, GX650PI/PZ/PY/PV, GV601VV/VU/VI,GV302XV/XU/XI/XA
